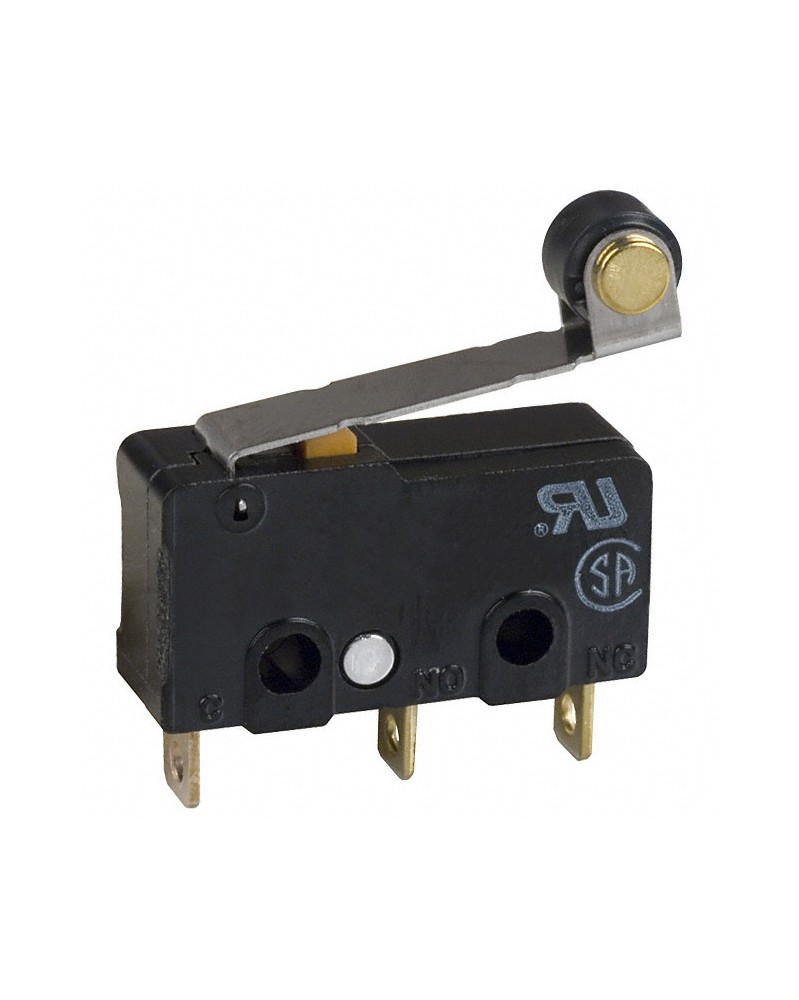

SS-5GL2

Switch SPDT Chassis Mount SS-5GL2

$3.04

The SS-5GL2 is a snap-action SPDT switch manufactured by Omron Electronics Inc-EMC Div. This switch has a current rating of 5A and is designed for use with 125V. It features a lever actuator and is intended for through-hole mounting. With a lead time of 14 weeks, this switch is part of the SS series and is packaged in bulk. It is suitable for various applications requiring reliable and quick switch action.



Security Policy



Shipping Policy



Return Policy

Type

Description

Category

Switches

Type

Limit Switches

Manufacturer

Omron Electronics Inc-EMC Div

Series

SS

Packaging

Tray

Part Status

Active

Circuit

SPDT

Switch Function

On-Mom

Current Rating (Amps)

5A (AC)

Voltage Rating - AC

125 V

Actuator Type

Lever, Roller

Mounting Type

Chassis Mount

Termination Style

Solder Lug

Ingress Protection

IP40

Operating Force

50gf

Release Force

6.118gf

Operating Position

0.571" (14.5mm)

Pretravel

-

Differential Travel

0.031" (0.8mm)

Overtravel

0.047" (1.2mm)

Operating Temperature

-25°C ~ 85°C

Electrical Life

200,000 Cycles

Mechanical Life

30,000,000 Cycles

Base Product Number

SS-5



Reference SW156-ND

Specific References

mpn
SS-5GL2
Condition New
